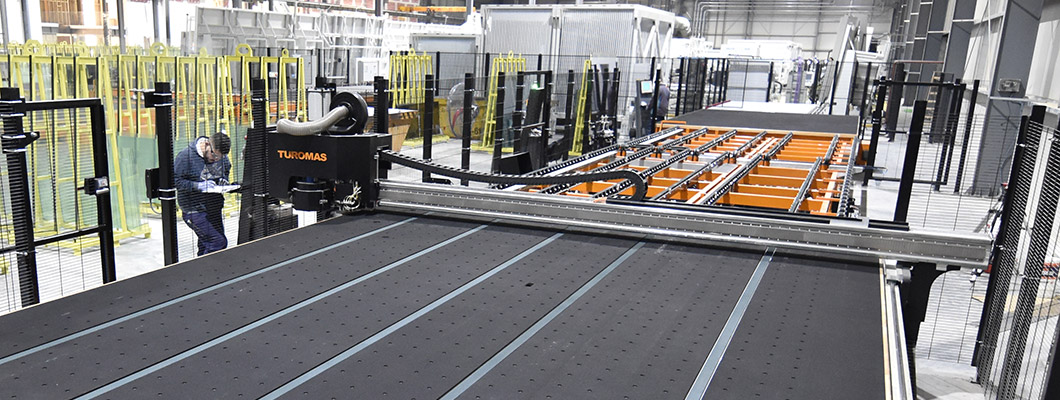

RUBI 403VAC-6
- Max. Speed: 220 m/min
- Max. Acceleration: 17 m/s²
- Accuracy: ±0,15 mm (0.006")
- Glass thickness: 2-25 mm (0.08"-1")
- Traction system: Gantry
- Maximum cutting width: 3700 x 2600 mm (146" x 103"). *The maximum cutting width can be updated to 6100 x 3300 mm (241” x 130”)
- Entrance: Widewise
- Loading: Vacuum/Belts
- Positioning: Belts
- Evacuation: Automatic
STANDARD FEATURES
- Extremely robust structural design
- Optimized air cushion
- TFS Advanced Planimetry System
- Aluminum board
- Electronic glass squaring
- Automatic glass thickness detector
- Automatic cutting pressure regulation
- Double-guided cutting bridge
- Cutting head with self-swivel cutting wheel
- Automatic glass remnants dimensions measurement
- Laminated glass cutting
- Template scanner
- Vinyl cutting
- Shape cutting
- Optimizer software
- Helicoidal guides
- Remote Assitance
- Advanced shapes editor
- Compatibility with leading softwares on the market
- Security fences
- Cutting head with 4 cutting tools
- Double lubrication tank
- Trapezoidal rack-and-pinion
- Self-lubricating bearings
OPTIONAL FEATURES
- Low-E and TPF edge deletion system
- Printer with automatic label applicator
DIMENSIONS
COMMON LAYOUTS
